KC-EPS200 Common Rail Injector Test Bench/ Common rail testing machine

FOB Reference Price:Get Latest Price
$1.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Common Rail Tester
Voltage:
220V, 380V
Power:
11KW, Electronic
Certification:
ISO9001:2008 quality management system certification
Applicable Models:
common rail injector and common rail pump
Place of Origin:
Beijing, China (Mainland)
Brand Name:
BJG
Model Number:
KC-EPS200, KC-EPS200
Warranty:
1 Years
Usage:
Auto Testing Machine
color:
all kinds
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case fit for delivery
Port
Tianjin Beijing or HK
Lead Time :
1-30 days after payment
Product Description

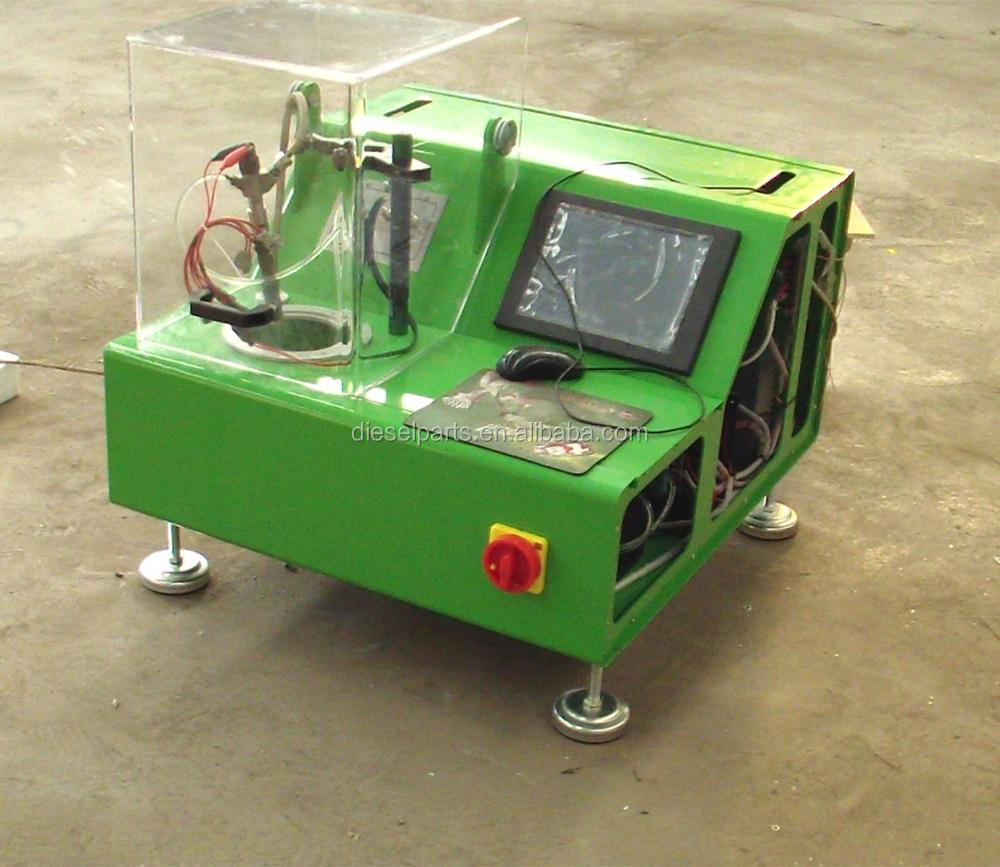

Common rail injector test bench KC-EPS200



 Please notice: We use Servo Motor/CP1 brand new pump/ Flow Meter and DRV Valve

Functions

  • Industrial computer with windows operating system;
  • Having its own data base which can be queried, stored and modified to form a new data base;
  • Adjustable common rail pressure in close-loop control, which is very stable with a fluctuation of ±1Mpa;
  • The common rail pressure is displayed on the computer in real time;
  •  The driving signal, the pulse-width and the frequency is adjustable.
  • The injection times and time can be set freely;
  • Over voltage protection function--if the common rail pressure is over 1600bar the machine will stop by itself.
  • Internet connection makes the remote control possible (optional);
  • Safety shield of plexiglass makes the operation very safe.









Characteristics

  • To test the oil supply quantity and oil supply pressure of common rail pumps;
  • To test the injection quantity at startup;
  • To test the max oil injection quantity and the pilot injection quantity of the common rail injector;
  • To test the oil return quantity of the common rail injector;
  • To test the uniformity of the common rail injector;
  • To test the performance of the ratio solenoid valve in the common rail pump;
  • To test the leak tightness of the common rail test bench and injectors;
  • To test the performance of the common rail pressure sensor;

Technical parameters

  •  Measurement speed: 0 ~ 4000 r / min;
  •  size of the cylinder of the set: 45CC, 150CC;
  • Fuel tank capacity: 60L;
  • automatic oil temperature control: 40  2 ;
  •  Test oil filtration precision: 5μ;
  • provide DC12V/24V power;
  • supply pressure: low pressure: 0 ~ 0.4Mpa,
  • High Voltage: 0 ~ 4Mpa;
  • pressure: 0 ~ 0.3Mpa;
  • Three-phase power supply: 380V/50HZ or on request;
  • flywheel inertia: 0.8KG • M2
  • center height: 125MM; Output power: 5.5KW, 7.5KW, 11KW and 15KW or on request.
  • Total Size (MM): 2370  960  1880;
  •  Net Weight (KG): 1200.

Package&Shipping

Package: Neutral Carton Box, Wooden Box or Package as Customer Requested

Shipping Method: International Express like DHL,TNT,UPS,Fedex,Aramex etc; By air;By Sea or the way on the request of customer.



Payment Terms



We can accept your payment through TT,L/C, Western Union, Money gram, PayPal or on Aliexpress;

Also we can Trade Assurance Supplier and you can place the Trade Assurance Order.
